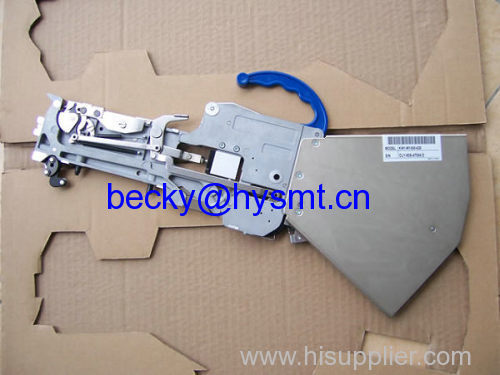

YAMAHA FEEDER CL8X2 KW1-M1300-020 for SMT machine
YAMAHA FEEDER 0201

YAMAHA FEEDER CL8 * 2MM KW1-M1300-020

YAMAHA FEEDER CL8 * 4MM KW1-M1100-030

YAMAHA FEEDER CL12MM KW1-M2200-301

YAMAHA FEEDER CL16MM KW1-M3200-100

YAMAHA FEEDER CL24MM KW1-M4500-015

YAMAHA FEEDER CL32MM KW1-M5500-015

YAMAHA FEEDER CL44MM KW1-M6500-015

YAMAHA FEEDER CL56MM KW1-M7500-015

YAMAHA FEEDER FSII8 * 2MM KJK-M1500-000

YAMAHA FEEDER FSII8 * 4MM KJK-M1500-011

YAMAHA FEEDER FT8 * 2MM KJK-M1500-010

YAMAHA FEEDER FT8 * 4MM

KHJ-MC100-000 ss8mm electric feeder

KW1-M1300-020 YAMAHA FEEDER feeder CL8X2MM Accessories

No. Part No. Part Name Q'ty Remarks Date Revised No.

1 K87-M111H-20X BACK STOPPER 1

2 K87-M111B-00X BACK STOPPER AXIS 1

3 KW1-M111A-00X SPRING 1

4 K87-M111G-10X PUSH PIN 1

5 K87-M111C-00X PLANE WASHER 1

6 K87-M111P-00X SCREW, FLAT HEAD + 1

7 K87-M111D-00X PUSH PIN 1

8 K87-M112L-10X SPROCKET AXIS ASSY 1

9 KW1-M112A-00X RACKING LEVER ASSY 1

10 K87-M112D-10X COIL SPRING 1

11 KW1-M111E-00X SPRING 1

12 K87-M111F-10X STOPPER PIN 1

13 K87-M1181-00X ROD CONNECT 1

14 K87-M1184-00X CONNECT PIN 1

15 KW1-M1185-00X MULTI CYLINDER 1

16 KW1-M111L-00X BARB CONNECTOR 2

17 K87-M111M-00X GASKET 2

18 KW1-M11B1-00X AIR HOSE 1 L70

19 K87-M11B9-00X CIRCLIP E 1

20 KW1-M11BL-00X BOLT, HEX SOCKET HEAD 2

21 KW1-M11BM-00X SPRING LOCK WAHSER 2

22 KW1-M114A-00X HAND LEVER ASSY 1

23 KW1-M116K-00X LEVER AXIS 1

24 KW1-M1177-00X MAIN ARM 1

25 K87-M111C-00X PLANE WASHER 2

26 K87-M11BF-00X SCREW, FLAT HEAD + IB 2

27 KW1-M114N-00X GUIDE AXIS 1

28 K87-M111R-00X SCREW, SET 5

29 K87-M111T-00X SCREW, SET 1

30 K87-M1320-10X SPROCKET ASSY 1

31 KW1-M1340-00X TAPE GUIDE ASSY 1

32 KW1-M134T-00X LEAF SPRING 1

33 K87-M53BS-00X SCREW, PAN HEAD + 1

No. Part No. Part Name Q'ty Remarks Date Revised No.

1 KW1-M1110-00X BODY ASSY 1

2 KW1-M1112-00X KNOCK PIN 1 FRONT

3 KW1-M1113-00X KNOCK PIN 1 REAR

4 K87-M1115-00X CIRCULAR RIVET 2

5 KW1-M1150-00X HANDLE LEVER ASSY 1

6 KW1-M116F-00X LEVER AXIS PIN 1

7 KW1-M115D-00X GUIDE PIN ASSY 1

8 KW1-M116D-00X TENSION LEVER ASSY 1

9 KW1-M116F-00X LEVER AXIS PIN 1

10 K87-M1115-00X CIRCULAR RIVET 2

11 KW1-M1131-00X CLAMP LEVER UNIT 1

12 KW1-M1132-00X CLAMP LEVER ASSY 1

13 K87-M113A-00X CLANK ARM ASSY 1

14 K87-M113D-00X ARM 2

15 K87-M113E-00X HINGE PIN 2 1

16 K87-M11D7-00X CIRCLIP E 2

17 K87-M113L-10X CLAMP LEVER AXIS 1

18 K87-M113M-00X AXIS PIN 1

19 K87-M113H-00X PUSH PIN 1

20 K87-M111V-00X SCREW, SET 1

21 K87-M111R-00X SCREW, SET 1

22 KW1-M114L-00X COVER 1

23 KW1-M111T-00X SCREW, THIN HEAD 3

24 KW1-M116J-00X METAL SHAFT 1

25 K87-M11BA-00X SCREW, FLAT HEAD + 3

26 KW1-M1191-00X DRIVE ROLLER UNIT 1

27 KW1-M1192-00X INDENTATION LVR ASSY 1

28 KW1-M119F-00X DRIVE ROLLER ASSY 1

29 K87-M117B-00X PLANE WASHER 1

30 K87-M11BB-00X SCREW, FLAT HEAD + IB 1

31 KW1-M119K-00X SPRING 1

32 KW1-M119L-00X IDLE ROLLER ASSY 1

33 KW1-M119R-00X COLLAR 1

34 K87-M21BB-00X SCREW, TRUSS HEAD 1

35 KW1-M119P-00X SPRING 1

36 KW1-M11A1-00X LOWER GUIDE PLATE R 1

37 K87-M53BS-00X SCREW, PAN HEAD + 2

38 KW1-M11A3-00X LOWER GUIDE PLATE L 1

39 K87-M111N-00X SCREW, PAN HEAD + 2

40 KW1-M135L-00X HOLD ARM 1 BLUE

41 KW1-M115M-00X ARM AXIS 1

No. Part No. Part Name Q'ty

1 KW1-M11D1-00X REEL HOLDER ASSY 1

2 KW1-M111S-00X SCREW, FLAT HEAD + 1

3 K87-M111S-00X SCREW, FLAT HEAD + 2
